Product Overview

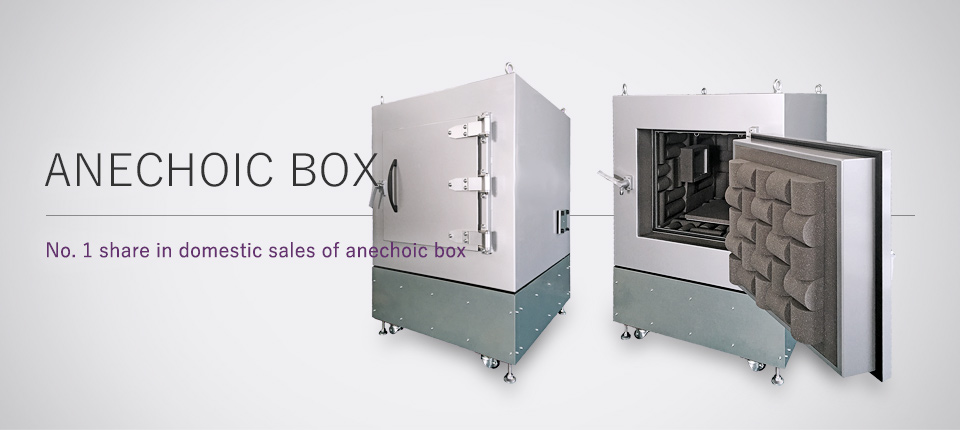

Anechoic box is a small acoustic box which have the feature of high sound insulation( transmission loss) and sound absorption. It’s applied to measuring the noise of a product, inspecting the abnormal sound, quality control, research and development.

Utilizing our noise control technology, we developed special multi-layer panel. Over the past 9 years, we have proposed, designed and manufactured over 300 units according to a wide various using purposes and specifications. The high sound insulation performance with guarantee performance is unrivaled compared with other companies.

Measuring Target	communication information equipment, Precise instrument electronic components, nanotechnology-related products, environment-related products.
Measuring Purpose	abnormal sound detection, research and development, acoustic measurement for product performance, vibration analysis, environment test, etc.
Measuring Machine	general, precise noise meter, FFT analyzer, vibrometer, various acoustic evaluation equipment, etc.

※ Anehoic box is using R&D measurement. And optimized according to user’s measuring method and specifications.

About Lead Time

Usually, the lead time is about 30 days after order.

It may change depending on the operation of the factory, so negotiated with us by any chance. In addition, the manufacturing period will be longer than the lead time when an anechoic box door is applied to an electric situation or as an option of coupling specification, etc.

About Installation

Our installation works are not necessary.

Basically, transportation methods are: crane truck unloading, truck transportation without unloading. Since the anechoic box is equipped with casters, it can be manually moved to the installation location. We will check the transportation route, the load of the elevator, steps and maintenance since the anechoic room is heavy. And we can also undertake transportation, delivery and installation.

※ Can be exported to overseas.

Back to top ▲

Type/ Price

Anechoic boxes are available in TYPE 1 to TYPE4 specifications. But basically, we’ll design according to the size of the user’s measuring subjects, measurement method and workability. There are many examples such as using the drive mode (electric, pneumatic, hydraulic) to open and close the door, addition of lighting and BNC socket, and the setting position of microphone adopts free configuration.

Type	Effective (mm)	External Dimensions (mm)	Price
Anechoic box TYPE-1	W400 × L450 × H400	W850 × L850 × H850	1,260,000 yen
Anechoic box TYPE-2	W600 × L650 × H600	W1050 × L1050 × H1050	1,620,000 yen
Anechoic box TYPE-3	W800 × L850 × H800	W1250 × L1250 × H1250	1,980,000 yen
Anechoic box TYPE-4	W1000 × L1050 × H1000	W1450 × L1450 × H1450	2,340,000 yen
Free type (customized products)	Free	Free	According to dimensional proportion

※ Example of a free type: W1050×L1250×H1050→ Price 1,500,000 yen.
※ The freight is not included.
※ An inexpensive anechoic box out of the specification can be manufactured as well.

Back to top ▲

Specification

Sound Insulation (Transmission Loss) / dB

Top-class sound insulation performance is guaranteed.

The sound insulation performance of an anechoic box is unrivaled comparing with other companies. The background noise in an anechoic box can even close to 0 dB depending on the installation environment. An advanced acoustic measurement space can be realized by introducing our anechoic boxes.

Sound Insulation (Transmission Loss) / dB
Hz	31.5	63	125	250	500	1K	2K	4K	8K
Sound Insulation	(24)	(34)	39	43	51	55	63	64	62
Guarantee value
Actual value	29.1	46.2	44.9	44.7	61.8	64.1	71.7	75.6	80.1
Manufactured by a company	—	17	20	27	35	40	45	—	—

About Sound Insulation Performance

We can guarantee the sound insulation performance by using a noise signal generator, speaker, general noise meter or precise noise meter, measuring (transmission loss test) according to JISA1417:2000. And submit the test result as a “Measurement Result Report”.

Other Specification

• dedicated base (height can be changed)
• devibration pad × 4-point support
• sound absorption layer: AST sound absorption material + backside sound absorption layer
• double-shielded sound insolation door
• utility pipe : inner diameter 55 × 2
• hanging hook M8×4
• test panel : steel (sound absorption) t4.5
• sealed handle, operating handle
• die-casting rotary ascending hinge
• adjuster, caster
• eyebolt M20-24
• sealed gasket
• baking paint of outer layer: standard color (silver) or specified color

※ According to the work content, drawer test board, lighting and socket can be added.
※Please ask the drawings for detail.

Back to top ▲

Examples of additional options

Option	Abstract	Reference Price
Noncombustible material for interior	Pacification AST sound absorption material (flame-retardant material) ↓ Glasonic( noncombustible material)	0 yen～
Free clamp for microphone	Changing the hanging bolt	0 yen～
Limit switch	Door part	5,000 yen～
Various additional design expense	Additional options design drawings	0 yen
Openings for additional wires	Diameter 60.5・89.1・101.6	0 yen～
Sliding door	Sliding rail heavy drawer	75,000 yen～
Rotating table	Position can be adjusted	65,000 yen～
Lightning・ switch	60W・ 100W	50,000 yen～
Measurement mesh	SUS304・50 pitch	20,000 yen～
Grounding grid	SUS304・50 pitch	20,000 yen～
Outlet	100V ・ 2	29,000 yen～
On-site assembly of an anechoic box	main body separate processing( one divides into two)	400,000 yen～
Load-bearing dispersive floor material	Installation site when there is no load capacity	80,000 yen～
Internal remote operation	silent cylinder ・ remote control, etc.	quote individually
Temperature control device	Internal cooling ・ air-exchange device	quote individually
Special sound insulation widow	200×400 sound insulation structure	140,000 yen～
Double door	Double sealed structure	Depending on the type
Automatic door	Hydraulic ・ button type ・ inductive type	quote individually
Enhanced sound-absorbing performance	Change sound absorption material	quote individually
Change the position of wire opening	‐‐‐‐	0 yen
Change the height of the dedicated table	‐‐‐‐	0 yen
Specified color baking paint	‐‐‐‐	0 yen
Clean room compatible	‐‐‐‐	quote individually
Dimension change	‐‐‐‐	quote individually
Reverberation measurement set	Reverberation + anechoic system	quote individually
Acoustic measuring instruments	Noise meter + PPF analyzer	quote individually

Back to top ▲

Others

• Generally, the lead time is about 30 days ※It may change depending on the operation of the factory, so please negotiated with us.
• Our installation work is not necessary. The transportation is a 4-ton unique vehicle (crane)
• Sound absorption material does not deform (fire-proof material). And it can be changed to a noncombustible sound-absorbing material.
• With completed books( design drawing, instruction manual, transmission loss test data)
• Proposals about noise meter or analyzer
• The shape of the box and its sound absorption coefficient can be changed according to the acoustic measurement objects.
• We can test the sound insulation performance individually to ensure sound insulation quantity.
• Compare with other companies, we are proud that our sound insulation performance is top class.
